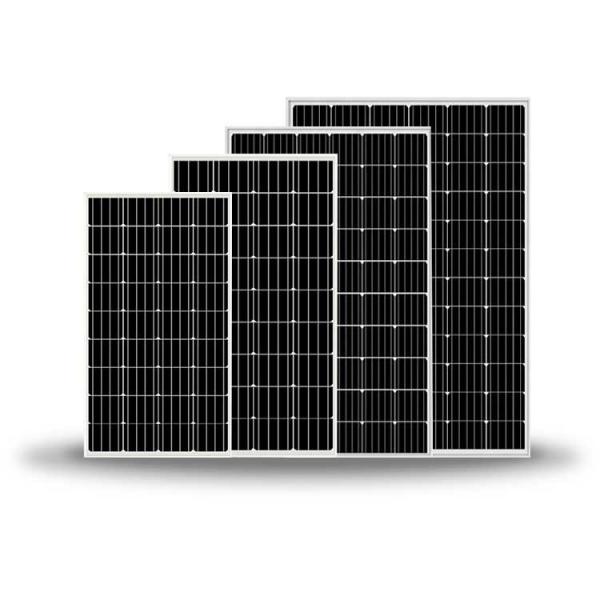

tesla solar mono solar panel 260w 265w 270w 275w 280w 285w 290w
295w 300w
1. On production qualifications
With more than square meters 10000m² and excellant production equipment, we have obtained honors on CQC
of National Electrical Applicance certificate, ISO 9001
international quality system certificate. And we are also excellent
solar PV engineering and 3A credit enterprise in China.
2. Main Introduction of the company
We are a high-tech enterprise specializing in R&D, production
and sales of supporting materials for solar energy system. The
company's core values are "customer-centered,
contributor-oriented,benchmarking innovation, and pragmatic" . With
the mission of "changing energy structure and assuming
responsibility for the future", we focus on product quality and
manufacturing quality while striving to provide the overall
solution of clean energy and better solar solutions for millions of
households worldwide
3. Primary Production Advantages
① Multi busbar technology
Having better light utilization and current collection
capabilities, it can effectively improve power output and
reliability
② Adaptability to harsh environments
Having passed tests on salt spray and high ammonia corrosion by the third-party
organizations
③ Better resistance to hot spots
By optimizing the current design and working condition current, a
better temperature coefficient and resistance to hot spots can be
achieved
④ Load capacity
The whole component has been passed the tests on wind load of
2400pa and snow load of 5400pa
⑤ Anti-PID guarantee
Minimize the attenuation probability caused by PID phenomenon by
battery perduction technology optimozation and material contorol
⑥ Industry-leading linear warranty
Can ensure 12 years of process material warranty and 25 years line
property
4 Main Technology
1) Double-sided power generation technology is one of the
technological innovations
The double-sided module can absorb sunlight from the front and back
of the module at the same time to generate electricity,and the
power generation gain can reach to a high efficiency
2) Half-cell module technology
In a half cell, the current through each main grid is reduced to
1/2 of the original. Therefore, the internal power consumption of
the half-chip module is reduced to 1/4 of the whole-chip module
3) Less shadow occlusion loss
Under the same occlusion situation, the shadow occlusion loss of
the half-cell component is less than that of the entire component
4) Low Working Temperature
After the R&D PV test system measures the working temperature
of the half-cell module and the conventional module,
the temperature of the half-cell module is ~2 degrees Celsius lower
than that of the conventional module
5) High Output
5. Electrical Specifications
| ELECTRICAL SPECIFICATIONS |
| Model Type | JT260-24M | JT270-24M | JT280-24M | JT290-24M | JT300-24M |
| Nominal Maximum Power(Pmax) | 260W | 270W | 280W | 290W | 300W |
| Optimum Operating Vo;tage(Vmp) | 31.25V | 31.5V | 31.80V | 32.20V | 32.67V |
| Optimum Operating Current(Imp) | 8.32A | 8.57A | 8.81A | 9.01A | 9.19A |
| Open Circuit Voltage(Voc) | 37.78V | 19.60V | 38.00V | 38.40V | 38.80V |
| Short Circuit Current(Isc) | 8.83A | 9.20A | 9.45A | 9.68A | 9.88A |
| Module Effciency | 15.88% | 16.60% | 17.20% | 17.90% | 18.44% |
| Cell Effciency | 18.10% | 18.90% | 19.20% | 19.80% | 20.47% |
| Power Tolerance | 0 to +3% |
| Maximum Sytem Voltage | DC 1000V |
| Operating Temperature | -40℃~+85℃ |
| Maximum Series Fuse Rating | 20A |
| MECHANICAL DATA |
| Cell Type | mono 156mmx156mm |
| Cell Arrangement | 60 cells in series |
| Dimensions | 1640x990x40mm |
| Weight | 19.50kg(approx) |
| Frame Cover | 3.2mm temper glass |
| Frame Material | Anodized aluminium alloy |
| J-Box | IP67,3 diodes |
| Cable | 4mm(IEC) / 12AWG (UL),1000mm(650mm is optional) |
| Connectors | MC4 or MC4 compatible |
| TEMPERATURE CHARACTERISTICS |
| Temperature Coefficient(Pmax) | -0.420% / ℃ |
| Temperature Coefficient(Voc) | -0.346%/ ℃ |
| Temperature Coefficient(Isc) | 0.056%/ ℃ |
| Norminal Operating Cell Temperature | 45.3±2℃ |
