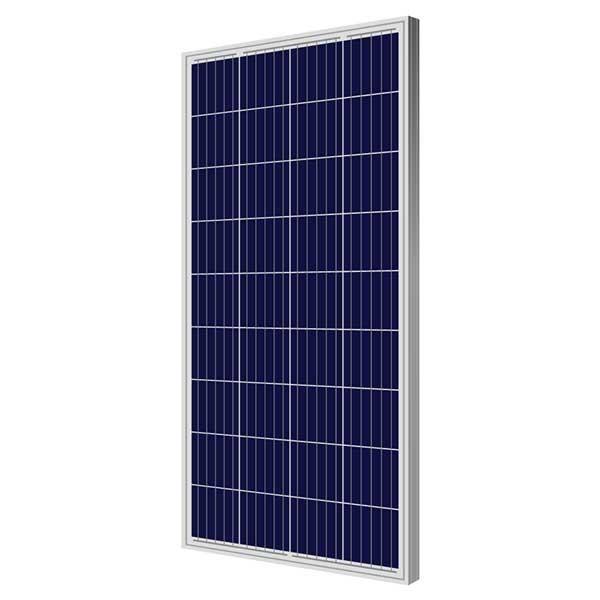

solaredge monitoring Mono Cell Solar panel 305w 310w 320w 330w 340w
high power
1. On production qualifications
With more than 10000 square meters and good sustainable equipments,
we have achieved honors on CQC certifications of National
Electrical Applicance, ISO 9001 international quality system
certificate, which helps us to be an excellent enterprise in solar
engineering and 3A credit in China.
2. Dominant Advantages on equipment
① Multi busbar technology
With better light utilization and current collection capabilities, it can greatly maximum the power output and reliability
② Adaptability to harsh environments
Passed kinds of tests on salt spray and high ammonia corrosion by
the third-party authorized organization in China
③ Better resistance to hot spots
By optimizing the design on current condition, a better temperature coefficient and resistance to hot spots can be realized
④ Load capacity
The whole component has been passed the tests on wind load of 2400pa and snow load of 5400pa and has got the related
certifications
⑤ Anti-PID guarantee
Have achieved the minimization of the attenuation probability
caused by PID phenomenon by battery perduction optimozation
technology and material contorol
⑥ Industry-leading linear warranty
Can ensure 12 years process material warranty and 25 years Line
property
3. Solutions on one-stop multi-scenario
we have the leading professional full-process management system to
provide environmentally friendly multi-scenario solutions by
project consulting, design, installation, procurement, debugging,
operation and maintenance
4. High-efficiency power station delivery
By comprehensive comparison of simulation tools and solutions, the
advantages of our products are continuously amplified, and the
efficiency of the power station is continuously improved
5.project cases
Relying on industry-leading product quality, standardized technical
team and standardized design system, our household solutions bring
considerable economic benefits while giving environmental
protection and technology support
6. Electrical Specifications
| ELECTRICAL SPECIFICATIONS |
| Model Type | JT305-24M | JT310-24M | JT320-24M | JT330-24M | JT340-24M |
| Nominal Maximum Power(Pmax) | 305W | 310W | 320W | 330W | 340W |
| Optimum Operating Vo;tage(Vmp) | 37.72V | 37.80V | 38.10V | 38.23V | 38.59V |
| Optimum Operating Current(Imp) | 8.09A | 8.20A | 8.40A | 8.64A | 8.82A |
| Open Circuit Voltage(Voc) | 44.78V | 44.63V | 45.37V | 45.50V | 46.22V |
| Short Circuit Current(Isc) | 8.66A | 8.70A | 8.95A | 9.19A | 9.33A |
| Module Effciency | 15.72% | 15.98% | 16.58% | 17.10% | 17.62% |
| Cell Effciency | 17.93% | 18.22% | 18.60% | 18.80% | 19.40% |
| Power Tolerance | 0 to +3% |
| Maximum Sytem Voltage | DC 1000V |
| Operating Temperature | -40℃~+85℃ |
| Maximum Series Fuse Rating | 20A |
| MECHANICAL DATA |
| Cell Type | mono 156mmx156mm |
| Cell Arrangement | 72 cells in series |
| Dimensions | 1950x990x40mm |
| Weight | 22.86kg(approx) |
| Frame Cover | 3.2mm temper glass |
| Frame Material | Anodized aluminium alloy |
| J-Box | IP67,3 diodes |
| Cable | 4mm(IEC) / 12AWG (UL),1000mm(650mm is optional) |
| Connectors | MC4 or MC4 compatible |
| TEMPERATURE CHARACTERISTICS |
| Temperature Coefficient(Pmax) | -0.420% / ℃ |
| Temperature Coefficient(Voc) | -0.346%/ ℃ |
| Temperature Coefficient(Isc) | 0.065%/ ℃ |
| Norminal Operating Cell Temperature | 45.3±2℃ |
